Automatic Lifting Magnets

Automatic Lifting Magnet

Automatic Lifting Magnet is made of strong magnetic material adopting ratchet wheel and pallet mechanism together with the raise of travelling crane to control the mandrill and automatically absorb and unload the materials, featuring no electricity consumption, convenient and safe in operation. It is widely used for lifting and transporting short and thick plates in the factory, dock, warehouse and transportation department. The air gas adjusting rod is equipped in particular which can adjust the magnetic force conveniently.

The quick, safe and easy way to lift ferrous materials and work pieces. These are two Pole Permanent Magnetic Lifters. The two poles are at the bottom of the lifter. These lifters use high grade Magnets for producing strong magnetic flux path through the two poles. The lifter is placed on the MS flat/block that is to be lifted. The turn of the handle in its ON position with MS flat/block/cylinders (to be lifted) at the bottom ensures completion of magnetic flux path through the MS body. The MS body gets attached to the lifter. The turn of the handle in its OFF position detaches the MS body from the magnetic lifter.

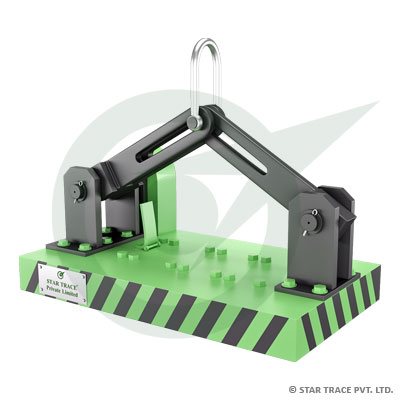

  • Automatic Magnetic Lifter
Automatic Magnetic Lifters
WORKING PRINCIPLE:

Permanent lifter is made up of two parts, such as permanent sucker and discharge device. The permanent sucker is made up of permanent magnet and magnet-conductive plate. The magnetic force wire generated by the permanent magnet will go through the magnet-conductive plate, attracted materials and form a closed circuit thus to achieve the purpose of lifting the steel materials. It is suitable for being used to lift and transport magnet-conductive billets, plates and rounds in industries of mechanical engineering, metallurgy, shipyard, car factory, dock and etc.

The Automatic permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.

BENEFITS of automatic lifting magnet

The following are the benefits of automatic lifting magnet:

  • Compact and lightweight.
  • Suitable for Flat and round material.
  • Very High Lift to its weight ratio.
  • Quick & Easy Operation with ON/OFF System.
  • Neodymium Magnetic Powered System.
  • Improves Plant Safety No direct contact with men.
  • Large and Heavy work piece can be moved/handled safely easily by only one operator.
APPLICATIONS of automatic lifting magnet
  • For handling of steel plates, blocks, rounds, press moulds and loading/unloading on machines
  • Commonly used near flame cutting.
  • Very handy during fabrication.
  • Can handle finished components without leaving behind any scratch marks, unlike binding and slinging.
  • Can be used with spreader beam hanging multiple magnets for long plates/pipes /bars.
  • Can be used with mobile cranes.
Specification for automatic lifting magnet
Model lifting capacity (kg)
STAL 1000
STAL 2000
STAL 3000
STAL 5000
