Electro Magnetic Vibrators


Electro Magnetic Vibrators

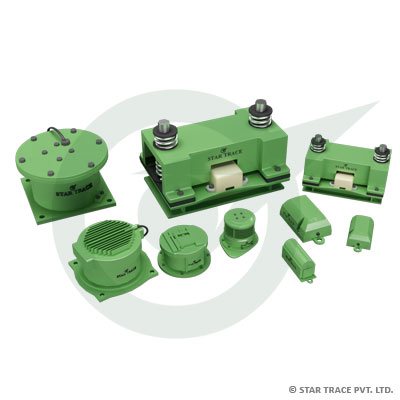

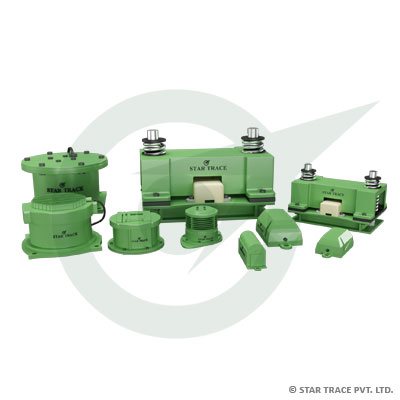

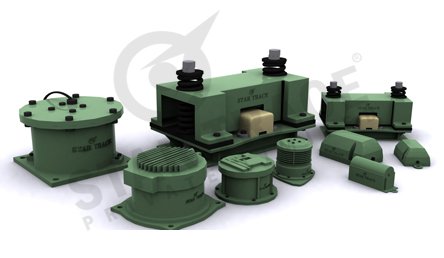

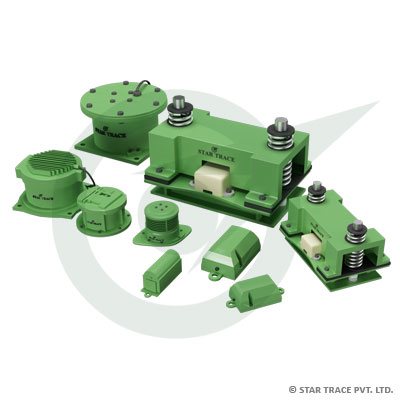

Star trace electromagnetic vibrators offer an economical means of maintaining the flow of bulk materials from bins, hoppers and chutes. they come with an easily adjustable control which provides flexibility and assures optimum flow for the type of material being handled. furthermore, electromagnetic vibrators can be operated continuously or intermittently depending upon the specific requirements. to assure the highest standard of quality, electromagnetic vibrators are factory tested and adjusted for optimum performance. most models come standard with totally enclosed, dust-tight and water-proof construction. since these vibrators have no rotating or sliding parts, they are virtually maintenance-free. electromagnetic vibrators come with the technical expertise and his application staff, who have been providing productive solutions for a wide variety of material handling problems.

  • Electromagnetic Vibrator
  • Electro Magnetic Vibrator
  • Magnetic Vibrator
Electromagnetic Vibrator Electro Magnetic Vibrator Magnetic Vibrator

Application:

Star Trace Electro Magnetic vibrators are connected to an a. c. supply system with protective conductor by means of a power unit. Power unit are required for the operation of the vibratory units at the prescribed oscillation frequency and for the continuous and practically powerless open or closed loop control of the oscillation amplitude, and hence of the delivery flow.

A complete range of modules ensures a great variety of applications, e.g. closed - loop control of the oscillation amplitude, controlled mill feeding, the integration of conveyor units in super systems controlled by a process computer.

Technical Data:

The power units can be connected to supply systems with all the usual system voltages. Non- standard versions are available.

Electro Magnetic Vibrators
THE MAIN TECHNICAL DATA
Suited for vibrated equipment in the working-weight range. From 6Kg to 2100 Kg
Oscillation amplitude (depending on working weight) Upto 2.17mm at 50 Hz oscillation ampl.
Acitve-Power Consumption From 50W-6600W
Admissible ambient temperature Upto 50o Celcius
Type of enclosure suitable for use in hot,damp climates IP 55
