Whilst enjoying immense popularity for many years on small horizontal and inclined screens, STAR TRACE is the first company in the world to perfect this simple drive arrangement on horizontal vibrating screens. Horizontal vibrating screens offer a highly efficient approach to screening.
This single development has resulted in tremendous advantages as far as reduced maintenance, compactness and simplicity are concerned. Besides the simplicity of the drive in the Horizontal Vibrating Screen, many other features have been incorporated to provide a machine which is specifically designed for heavy duty applications, long life, and low operating and maintenance costs, at a competitive price. The standard range of Horizontal Vibrating Screen is presented later , and these are normally available on short delivery.
Horizontal Vibrating Screens Opeation:

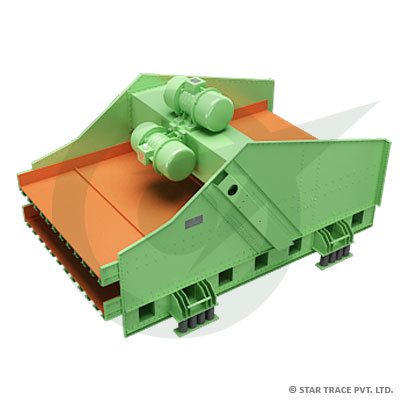

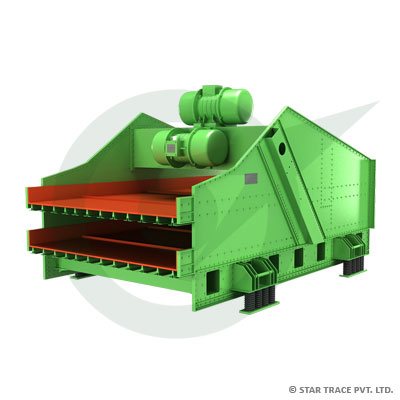

Horizontal Vibrating Screens are equipped with two vibrating motors rotating in opposite directions. This dual motor configuration in the Horizontal Vibrating Screen causes the screens frame to vibrate in a linear or straight-line motion perpendicular to the plane of the motors. Normally, the motors are positioned at an angle of 50 degrees with respect to the screens surface. This result in excellent forward conveyance of oversize particles , even when the screens frame is in an uphill position. Depending upon the application, the horizontal vibrating screens frame can be position from 10 degrees uphill to 15 degrees downhill. Maximum capacity is achieved in the uphill position, causing the formation of a pool at the feed end of the machine. The head or pressure from the pool increase fluid throughout. The horizontal vibrating screens of the screens frame efficiently conveys the oversize particles out of the pool area where they are then discharged.
Horizontal Vibrating Screens Flexiblity:
The horizontal vibrating screens can be adapted by the factory to meet special requirements regarding plant layout, horizontal screens performance and environmental constraints. Specify your particular requirements, or enquire about the range of features, accessories, painting systems and materials of construction currently available. Horizontal Vibrating Screens are frequently manufactured in various grades of stainless steel for the chemical industry and protected by special painting systems for severe conditions in the mining industry.
VIBRATORY MOTORS:
The vibratory motors of the Horizontal Vibrating Screen are rugged, heavy duty units exceptionally well insulated against the ingress of dust and water. Their IP 55 protection ensures that the units can operate in wet conditions, such as in washing and dewatering applications. A very generous holding-down bolt design is incorporated.
A common complaint of the Horizontal Vibrating Screen in the past has often been that vibratory motors tended to come loose. A great deal of thought and attention has been given to the fastening design of these motors. When compared with other makes of vibratory motors, the holding-down bolts are often in excess of 50-100% over designed. This, together with stress-relieved and machined surfaces and correctly torched nuts and lock nuts, results in an exceptionally secure vibrator fastening system.
When two vibratory motors of the same frequency are fixed to a rigid common base, which is freely suspended, or supported and run in opposite directions to each other, they automatically synchronize to produce a straight line motion. When this motion is applied to a horizontal Vibrating screen, the result is a horizontal action screens suitable for screening, conveying and dewatering of a large variety of products in limited headroom situations.
Linear Motion Drives:
Two Unbalance Motors: These are arranged as a double drive which produce linear vibrations. They are mainly used for medium-sized horizontal vibratory screens. Due to linear vibrations, these screens have much lower downwards inclination than those with shaft drives. In special cases can even run without any inclination or with a slight incline.
Exciters: Drive units of this type also produce linear vibrations in Horizontal Vibrating Screen. They are mainly used for vibrating heavy duty large and very large screens. When more than one exciter is being used in very large screens, vibratory force is uniformly and efficiently transferred from the exciter to the screens. The drive motor of the exciter is a standard foot-mounted motor. The motor torque is transmitted to the exciter either directly via a cardan shaft or indirectly by a v-belt drive or a variable speed gear. The indirect drive allows the user to adjust the rotational speed in the Horizontal Vibrating Screen.
Snubbers - The horizontal vibrating screens-mounted drive has eliminated the need for snubbers to reduce damage to v-belts and external motors during the large oscillations that normally occur during stopping. Bearing failure is limited to the bearing itself. Particles from a failed bearing cannot circulate in an oil bath and cause possible damage to other bearings and synchronizing gears.
Campactness - Horizontal vibrating screens can be positioned very closely with a minimum of space wastage. A vibrator motor needing reconditioning can easily be exchanged for a standby unit, with a minimum of downtime. Due to the absence of gears and v-belts, the units use less power than conventional drives.
The following are the features of Horizontal Vibrating Screens:
The advantages of STAR TRACE's Horizontal Vibrating Screens are that the use of the following equipment has now been rendered unnecessary:
Snubbers - The screens-mounted drive has eliminated the need for snubbers to reduce damage to v-belts and external motors during the large oscillations that normally occur during stopping. Bearing failure is limited to the bearing itself. Particles from a failed bearing cannot circulate in an oil bath and cause possible damage to other bearings and synchronizing gears.
Campactness - Screens can be positioned very closely with a minimum of space wastage. A vibrator motor needing reconditioning can easily be exchanged for a standby unit, with a minimum of downtime. Due to the absence of gears and v-belts, the units use less power than conventional drives
