Suspension Electro Magnet

Suspension Electro Magnet

Electro Suspension Magnet is engineered for use in high volume and deep burden applications. Their primary advantages are their "deep reach" and the ability to be turned on and off. Mounted over a vibratory bed or belt conveyor, these suspension electro magnets set the industry standard for strength. The renowned manufacturer supplier and exporter Star Trace’s suspension magnet is a quality equipment with sales being made not only in Chennai (Tamilnadu), India but globally. As the need for ferrous separation increases sales of suspension magnet also escalates as they are known for trouble free installation.

SUSPENSION ELECTRO MAGNET:

Electro Suspension Magnet consisting of aluminum or copper wound coils immersed in a transformer oil (for prevention of overheating or shorting) or air-cooled for extreme or dusty environments. All electro suspension magnets comes along with control panel. Operating heights up to 150 mm to 450 mm are available. Manually cleaned Suspension Electro Magnet can be supplied with a stripper mechanism. No power consumption, virtually maintenance free.

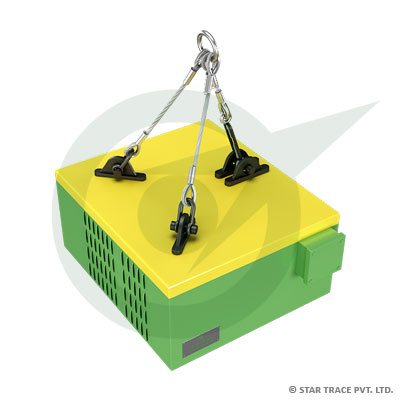

  • Electro Suspended Magnet
  • Suspended Electromagnet

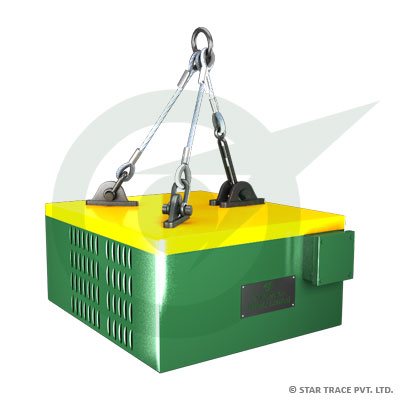

  • Suspended Magnet

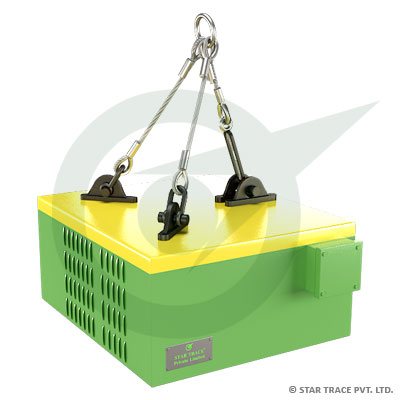

  • Suspension Conveyor Magnet

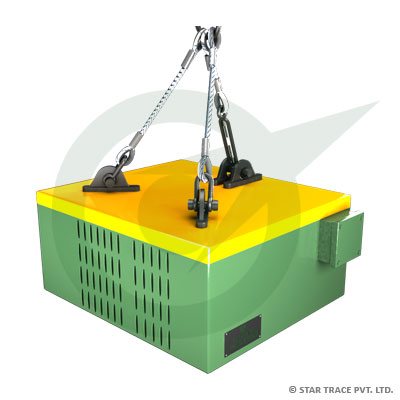

  • Suspension Electromagnet
Electro Suspended Magnet Suspended Electromagnet Suspended Magnet Suspension Conveyor Magnet Suspension Electromagnet

Tell us your buy requirements or Call +919940083567 / +919380521567 / +919381931456

OPERATION:

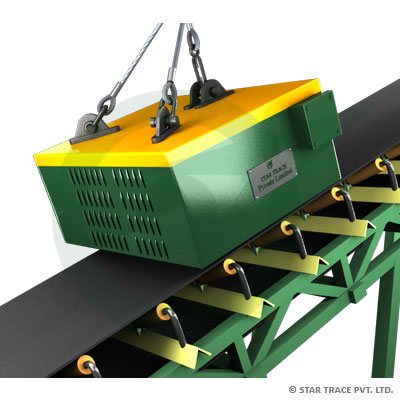

The ERBM series Suspension Electro Magnet is a strong electro magnet which is suspended over a conveyor belt carrying the product stream. The suspension magnet fits comfortably into the existing set up as it needs no major changes in arrangement. They are suspended from above with close proximity to feeds. Precaution should be taken to avoid magnetization of other integral parts like rollers etc...

Manual Clean (MC) Suspension Electro Magnet units must be periodically turned off in order to discharge iron accumulated on the face of the electro suspension magnet. They are suitable for applications where only occasional tramp iron is expected. These electro suspension magnets are usually suspended from a travelling trolley so that they can be swung clear of the conveyor before the iron is released.

Self-Clean (SC) Electro Suspension Magnet or Suspension Electro Magnet provide continuous, automatic removal of tramp iron and feature a heavy-duty belt, a channel frame for supporting the pulleys, adjustable belt take-up and drive. Suspension Electro Magnets are recommended where a large amount of tramp iron is expected or where there may be limited access to the electro suspension magnet for cleaning purposes. We are renowned manufacturers dealing with exceptional sales of self clean Suspension Magnet.

MAIN FEATURES of Suspension Magnet:

  • Rugged-all-welded construction of the Suspension Electro Magnet can efficiently prevent the coil from erosion of moisture, dust and harmful gas. Good environment and climate suitability, safe and reliable in operation and convenient maintenance.
  • The magnetic circuit of Suspension Electro Magnet is designed in optimization with deeper permeability, and its geometrical figure in the space magnetic field shaped semi-sphere so that will produce much stronger magnetic force compared with the other wares.
  • Field winding coil treated by vacuum desiccation and filled with special packing material to improve its mechanical and electrical performances and keep a long service life.
  • Suspension Electro Magnet Easily forms a complete set with other equipments to meet the different requirements under all kinds of circumstances. The relevant commutating equipment have complete functions available.

Options available for Suspension Magnet:

  • Stainless steel wear plates.
  • Turnbuckles.
  • Volt Meters.
  • Amp meters.
  • Line fuses.
  • Disconnect switch.
FEATURES OF ELECTRO SUSPENSION MAGNET OR SUSPENSION ELECTRO MAGNET

The following are the features of electro suspension magnet:

  • Non-combustible coolant.
  • Internal expansion tank.
  • Insulated copper/Aluminium coils.
  • Heavy duty impact plate.
  • Stainless steel angled cleats.
  • Steel dust enclosures for electro suspension magnet installations in dusty locations.
  • Rugged-all-welded construction of Suspension Electro Magnet efficiently prevent the coil from erosion of moisture, dust and harmful gas. Good environment and climate suitability, safe and reliable in operation and convenient maintenance.
  • The magnetic circuit in Suspension Electro Magnet is designed for optimization with deeper permeability,and its geometrical figure in the space magnetic field shaped semi-sphere so that it will produce much stronger magnetic force compared with the other wares.
  • Field winding coil treated by vacuum desiccation and filled with special packing material to improve its mechanical and electrical performances and keep a long service life.
  • Suspension Electro Magnet is compatible enough as they easily form a complete set with other equipments to meet the different requirements under all kinds of circumstances.The relevant commutating equipments have complete functions available.
APPLICATIONS OF ELECTRO SUSPENSION MAGNET:

Reliable Tramp Iron Removal from Fast-Moving Conveyors in Processing Industries for:

  • Purification of Product or Ingredient for Higher-Quality End Products (e.g., foundry sand, glass cullet, grain, food products and chemicals).
  • Protection of Processing Equipment (e.g., crushers, pulverizers, conveyor belts and screens).
  • Reclamation of Ferrous or Non-Ferrous Material (e.g., open hearth and blast furnace slag, incinerators and garbage plants).
  • Salvage of Valuable Items (e.g., tools, cutter bits and machinery parts).
Electro Suspension Magnet

The role of magnets in manufacturing segment is notable as they are the only tool to separate ferrous and non ferrous components. Both Permanent and electro magnets are used in accordance to the necessity of the manufacturer and the presence of iron in feeds. Permanent magnets do not have cumbersome wires but as such they form manual cleaning models. Electro suspension magnets operate with electricity and are powerful, they come under the self cleaning category.

The Electro Suspension magnet is used in industries which deal with huge amount of feeds and continuous operation is required to attain the targeted output. Electro suspension magnets facilitate automatic cleaning for the collected ferrous material can be relieved by just switching off the electricity supply. Due to the convenience in operation cleaning does not require much time, thus reducing down time and reaching target production. As leading manufacturers, suppliers and exporters we deliver suspension magnets that best suites your requirement. Drop in an enquirey or visit our factory and head office at Chennai, Tamilnadu.India.

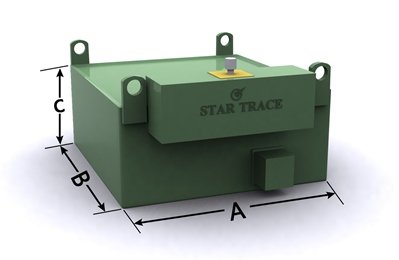

SPECIFICATION OF ELECTRO SUSPENSION MAGNET:
Suspension Electro Magnet Specification
STR Model Magnet Dimensions mm Magnet Height mm Magnet Voltage VDC Magnet Wattage Approx Weight Kgs
STR 241 600 X 600 550 115 1650 430
STR 301 750 X 750 650 115 2700 700
STR 361 900 X 900 500 115 3800 1050
STR 422 1050 X 1050 550 230 5000 1600
STR 482 1200 X 1200 600 230 6600 2250
STR 542 1350 X 1350 650 230 8000 3150
STR 602 1500 X 1500 750 230 10000 4000
STR 662 1650 X 1650 800 230 12250 5200
STR 722 1800 X 1800 800 230 14500 7250
STR 782 2000 X 2000 900 230 17000 9100
