Circular Motion Screen

Circular Motion Screen

The Type Universal circular motion screens are new generation vibratory screening machines characterized by low profile, efficient protection of support structure from vibrating masses and virtually noiseless operation.

The various versions of these circular motion screens permit its Use for wet and dry screening, coarse and fine Separations and are widely used in steel mills, mineral Beneficiation plants, chemical, mining, food and Fertilizer industries, coal preparation plants and many others.

  • Circular Motion Screen
  • Circular Motion Vibrating Screen
  • Circular Motion Vibratory Screen

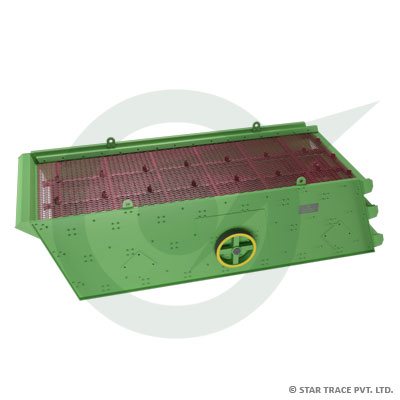

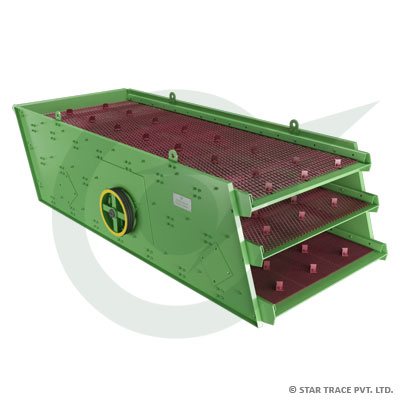

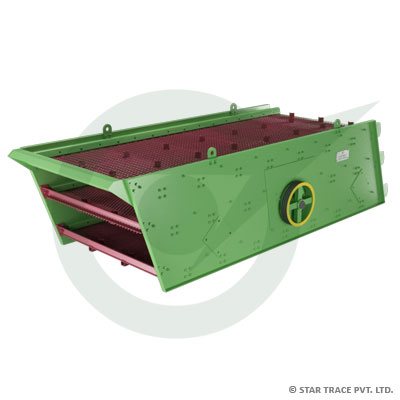

Circular Motion Screen Circular Motion Vibrating Screen Circular Motion Vibratory Screen


The circular motion screens consists of screens box, supporting device, vibration exciter, transmission part. The barrel-type vibration exciter of Circular Motion Screen is installed in the middle part of the machine. During normal operation procedure of Circular Motion Screen, the vibration of exciter will drive the screens mesh fixed on the screens box to vibrate, and then materials will be screened.


Circular Motion Screens are mainly used in chemical industry, power station, steel works, coal plant, mine, building sites, etc,. Our scalping circular motion screens can be customized to meet various requirements like high-quality and safe operations and single or multiple screens decks. Sand, gravel, building materials, minerals, ores, pellets, sinter coal, coke, lignite, limestone, dolomite, chemical products and fertilizers are efficiently handled by Circular Motion Screens.


The vibrator Unit of Circular Motion Screen is a steel shaft, completely housed in a protective steel tubular casing which in turn is provided with an easily replaceable rubber cover to resist damage and abrasion. Balance Weights of Circular Motion Screen are keyed to shaft . The bearings are specially designed for use in circular motion screens and are a high capacity self aligning double roller type.

The Circular Motion Screen bearings have special tolerances and improved lubrication facilities to give extended bearing life under arduous working conditions. Labyrinth type grease sealing is provided in Circular Motion Screens to prevent dust from getting into bearings. A deep groove V-belt Pulley is bored eccentrically to ensure true running arn to obviate the belt whip.


The Circular Motion Screens are bolted single or multi deck structure with a substantial and rigid design. The circular motion screens body consists of the two side plates with bolted transverse supports and screens mounts. The screen’s box is based on an open design. The Circular Motion Screen Drive shaft with its eccentric weights runs in heavy duty self-aligning roller bearings. The throw of the vibrating screens are varied by adjusting the eccentric weights.

The drive is either direct or through cordon shaft and v- belts. The circular motion vibrating screens are supported above the substructure by means of helical coil compression springs. The Circular Motion screen’s installation angle can be varied to suit the application. There are several options for lubrication, oil or grease, which can be used without modification. Selected bearing seals ensure a long service life.


A Type Circular Motion Vibrating Screens consist of Screens box, Screens, Vibrating motor, reducing setting and Base plate. The angle of the screens in the Circular Motion Screen could be changed by the adjustment of the height of the base plate. Usually the vibrating motor is fixed on the right side of the screens frame. We have all sorts of screens for our users to choose.

  • In the Circular Motion Screen two similar vibrating motors which rotate synchronously in different directions, make the screens body do periodical to-and-fro linear moving to achieve screens classification purpose.
  • The crossbeam and side boards of screens in the Circular Motion Screen are made of stainless steel plate or heat-resisting plate and connected by the rivets to decrease internal stress and make good fastness.

Circular motion screens(Single-shaft). When the shaft of an inclined screen is located precisely at the screen's centre of gravity, the entire screens body vibrates with a circular vibration pattern. Occasionally, the shaft is installed above or below the centre of gravity as in the system; this placement result in an elliptical motion, slanting forward at the feed end. Thus in the Circular Motion Screen there is circular motion at the centre; and an elliptical motion, slanting backward at the discharge end. Forward motion at the feed end service to move oversize material rapidly out of feed zone to keep the bed as thin as possible.

This action of Circular Motion Screens facilitates passage of fines which should be completely removed in the first one-third of the screens length. As the oversize bed thin down, near the centre of the screens, the motion gradually changes to the circular pattern to sow down the rate of travel of the solid. At the discharge end, the oversize and remaining near-size material subjected to the increasingly retarding effort of backward elliptical motion. This allows the near-size material more time to find openings in the screens cloth.


The following are the features of Circular Motion Screens:

  • Quick changing of screens mats and of the specially developed removable names, to allow lengthwise tensioning using simple screw connections.
  • The Circular Motion Screen is economically Equipped to customer's requirements with screens decks made of spring steel wire perforated sheet wire Perforated sheet metal, rubber or polyurethane optimum utilization of the screening area by a deck arrangement which is adapted to suit the grain size concerned, namely longitudinal, transverse, inserted and laid linings.
  • Low noise level with grease lubricated circular drive units which run extremely quiet and are of a stable design with low harmonic oscillation.
  • Circular Motion Screen exhibit high availability and operational reliability as the result of a highly Developed design and quality Standard.
  • Low maintenance costs resulting from a direct drive using a normal commercial motor and maintenance free card and shaft.
  • Circular Motion Screen facilitate easy, quick installation and trouble free removable of worn-out and replacement parts by the use of screw connections.

Our scalping circular motion screens can be customized to meet various requirements. They ensure high-quality and safe operations with single or multiple screens decks.

  • Sand and Gravel
  • Building materials
  • Minerals
  • Ores
  • Pellets
  • Sinter coal
  • Coke
  • Lignite
  • Limestone
  • Dolomite
  • Chemical products
  • Fertilizers

Circular Motion Screens are mainly used in:

  • Chemical industries
  • Power stations
  • Steel works
  • Coal plants
  • Mine
  • Building sites
Type Decks Capacity (m3/h) Motor power
Decks Spec.
Total weight
(L*W*H) mm
STR1225 2 8-60 5.5 1200*2500 3500 3040*1840*800
STR1225 3 10-70 5.5 1200*2500 3850 3040*1840*1200
STR1230 2 12-78 7.5 1200*3000 4200 3390*1900*800
STR1230 3 13-80 7.5 1200*3000 4600 3537*1900*1200
STR1237 2 15-86 7.5 1200*3700 4600 4090*1900*800
STR1237 3 16-90 7.5 1200*3700 5200 4400*1950*1200
STR1535 2 20-125 11 1500*3500 5890 4552*2250*900
STR1535 3 21-125 11 1500*3500 6700 4552*2250*1600
STR1545 2 22-150 15 1500*4500 6330 5400*2250*1600
STR1545 3 22-150 15 1500*4500 6800 5400*2250*1700
STR1548 2 22.5-162 15 1500*4800 6980 5300*2200*860
STR1548 3 22.5-162 15 1500*4800 7600 5752*2200*1600
STR1848 2 25-206 15 1800*4800 9080 6140*2470*1380
STR1848 3 32-276 18.5 1800*4800 9600 6140*2710*1780
STR1854 2 32-312 18.5 1800*5400 10150 6500*2600*1300
STR1854 3 32-312 22 1800*5400 10840 6960*2600*1630
STR2160 2 50-475 30 2100*6000 11780 7300*2950*2000
STR2160 3 50-475 30 2100*6000 12800 7300*2950*2000
STR2460 2 65-550 37 2400*6000 15600 7450*3230*1500
STR2460 3 70-620 37 2400*6000 17600 7450*3230*1910
