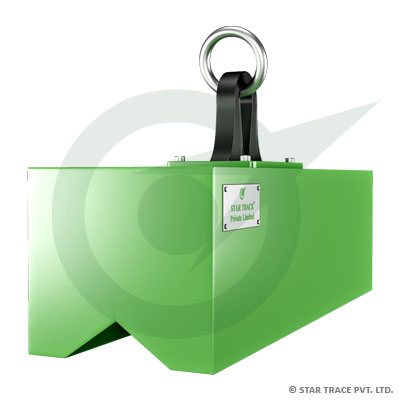

Coil Lifting Magnets


Coil Lifting Magnets

As a foremost company of this domain, we are manufacturing, exporting & supplying an extensive gamut of Circular Lifting Magnet. The offered lifting magnet is designed and manufactured by our professionals as per the set market norms by utilizing best quality raw material and latest technology. This lifting magnet is provider in different stipulations; this can also be customized as per the needs of the customers.

STAR TRACE Electromagnets On/Off capability and be controlled in automated sheet metal handling system.

Provide concentrated holding power and high responsiveness in manual or automatic applications.

  • Coil Lifting Magnet
Coil Lifting Magnets

PARALLEL POLE ELECTROMAGNETS:

Ideal for lifting or pick and place application where parts have uneven surfaces or odd shapes.They can be custom machined to specifically fit the applications.

MULTI - POLE ELECTROMAGNETS:

Ideal for the handling of thick ferrous items such as steel plate,forgings,die castings and other non-flexing items.

STR ELECTROMAGNET FEATURES
  • Optimum temperature rise
  • 24" standard leads
  • Tapped mounting holes
CUSTOM DESIGNS AND OPTIONS
  • Extended lead lengths & lead protection
  • Controlled holding power with optional variable power supplies
  • Selcted card locations
  • Retractile cords

TERMINAL BOX is designed to ensure protection whilst in operation and are of double entry type enabling the leads from the coils to be sealed in a separate cavity. The outside cable is brought through a gland into this second compartment ensuring no possibility of moisture entering the windings.

MAGNETIZING COILS for magnet size up to 900 mm dia is pure annealed wire wound and above these are strip wound. The glass insulation of class H standard with Fibreglass NOMEX tape forming an interlayer makes coil withstand high temperature.

BUMPING PLATES are of high grade Manganese Steel Casting as per IS - 276 with heavy ribs for added strength. These are clamped in position by the center and outer poles offering complete protection to the coil. The magnets are suspended with three legged STRING CHAINS made of best quality forged steel terminating in a forged ring. A two core cable is provided for connection with the supply and suitable insulated plug and socket ensure easy operation.
