Floatation Machine

Floatation Machine

Floatation Machine uses in classifying in non-ferrous and ferrous metal mineral. SF is the mechanical agitation type. It can own draw the inspiration and the pulp; Compared to A, its spirit is big , and the power loss low, and the impeller lap wears lightly; JIF has the self-absorption ability, the suction intensity big, and it may adjust the air input in 0.1 m3/min -1m3/min; the impeller diameter is small, the rotational speed low, consuming electricity few, also advantageous for the automatic control.

ITS FEATURES ARE AS FOLLOWS:
  • The capacity of air suction is large, the power consumption is low.
  • Every Cell has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation return circuit without need for any supplementary equipment, the circuit change is convenient for horizontal location.
  • The slurry cycle is rational, the settlement of coarse sand can be reduced into full play.
  • The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.

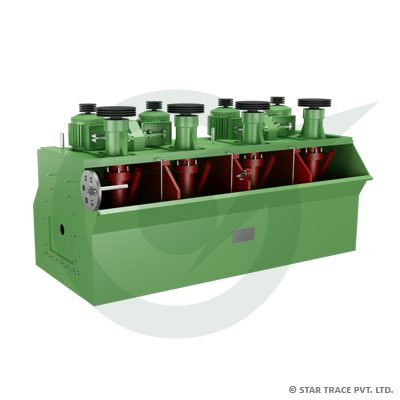

  • Floatation Cell

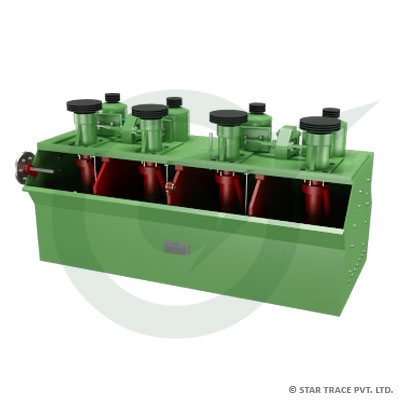

  • Floatation Machine

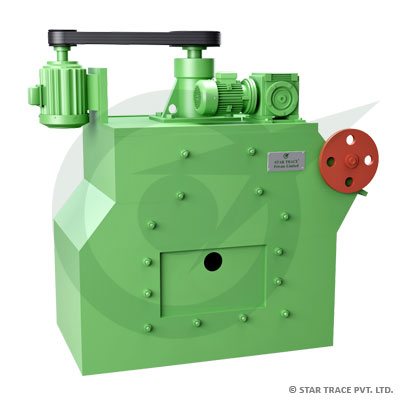

  • Floatation Tank
Floatation Cell Floatation Machine Floatation Tank
TECHNICAL SPECIFICATION
Model Impeller Dia(mm) Impeller Rotational(r/min) Processing Capacity(m/min) Main Motor Power(KW) Sub Motor Power(KW) Dimension(mm)
STFM-0.15 200 536 0.05-0.18 1.5 0.55 500X500X600
STFM-0.37 296 386 0.2-0.4 1.5 0.55 700X700X750
STFM-1.2 450 312 0.6-1.2 5.5 1.1 1100X1100X1100
STFM-2.8 550 268 1.5-3.5 11 1.5 1700X1600X1150
STFM-4 650 220 2-4 15 1.5 1850X2050X1200
STFM-8 760 191 4-8 30 1.5 2200X2900X1400
STFM-10 760 191 5-10 30 1.5 2200X2900X1700
