Industrial Agitators


Agitators

Agitation tank is the necessary equipment that regularly mixes the drugs and slurry, increases pharmaceutical drug reactions.

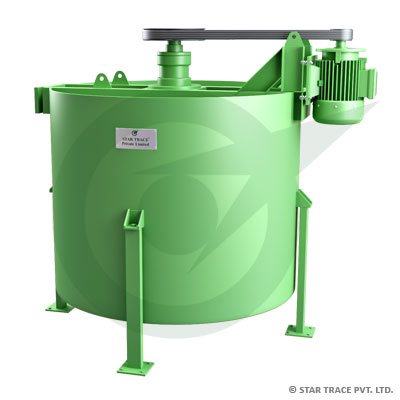

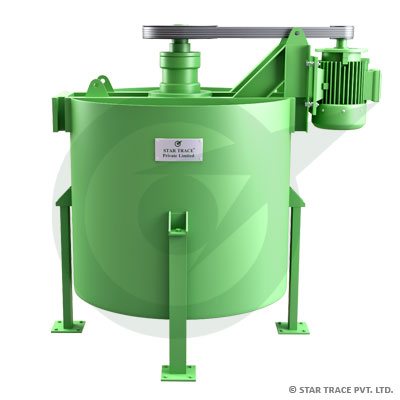

Agitation tank uses motor V-belt driving impeller to rotate. Regularly mixes the drugs and slurry, increases the role of pharmaceutical drug reactions and enhances the quality reaction time.

This machine applies to the mining dressing and also used as a variety of chemical industry trough cake mix.

We are Specialized in manufacturing, supplying, exporting, and fabrication of Agitator.

Application of agitator:

Mixing bucket, agitation barrels, mixing tanks, mixing barrels, are used for mixing pulp before the floatation process, makes the pulp and medicament mixed intensively, and creates condition for the ore beneficiation working.

Technical Specification for Agitator:

Further reference to the above, below specification is for sample only.

  • Agitator
  • Agitator Tank
  • Industrial Agitator
Agitator Agitator Tank Industrial Agitator

SPECIFICATIONS:
  • Make : Star Trace
  • Equipment : Agitator
  • Tank Size : 1.2m (Dia) X 1.4m (Height)
  • Capacity : 20 Mton
  • Impeller Dia. : 350mm
  • Impeller Type : Propeller
  • No. Of Propeller : 01 No.
  • Propeller Speed : 400 Rpm
  • Shaft Dia. At Bearing : Ø 100mm
  • Shaft Size : Ø80x1200 Mm Long
  • Shaft Moc : En-8
  • Propeller Moc : Mild Store
  • Power : 15hp, 3 Phase, 415v, 50hz, 1440rpm
  • Make : Cg / Kirlosker / Marathan
  • Mounting : Foot Mounted
  • Drive : Triple Groove ‘v’ Belt & ‘v’ Pulley
  • Vfd Drive : Optional
APPLICATION:

Widely used in the metal gravity separation, like tungsten, tin, gulch-gold, iron, manganese and iron brown, pyrite, mercury, titanium, antimony, lead, tantalum, niobium, etc, and all kinds of metal smelting slag metal recycling dressing.

Since we are engaged in manufacturing as well as in offering turnkey projects to our customers, we pay utmost attention to customer's specific demands and requirements. We take pride in our ability to tend to all the demands made by the customers concerning designing, fabrication, erection, installation or any other work. Our personnel ensure that the client's requirements are met with within the stipulated time frame and at industry leading prices. These endeavors are taken care of by obtaining the drafts of their designs or site maps for installation, erection etc.
