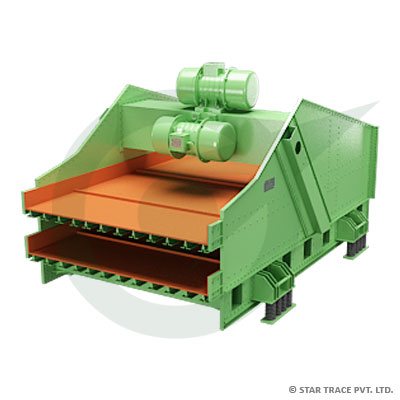

Whilst enjoying immense popularity for many years on small horizontal and inclined screens, STAR TRACE is the first company in the world to perfect this simple drive arrangement on horizontal vibrating screens. Horizontal vibrating screens offer a highly efficient approach to screening.
This single development has resulted in tremendous advantages as far as reduced maintenance, compactness and simplicity are concerned. Besides the simplicity of the drive, many other features have been incorporated to provide a machine which is specifically designed for heavy duty applications, long life, and low operating and maintenance costs, at a competitive price. The standard range of screens is presented later in the brochure, and these are normally available on short delivery.

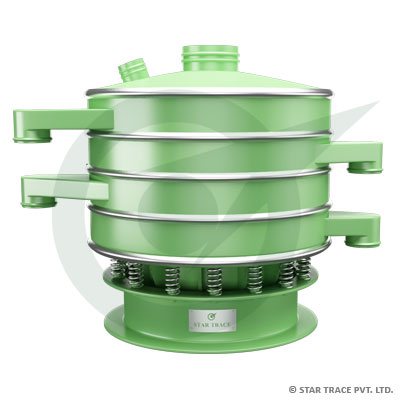

Gyro screen separator or vibro separator is purely an industrial equipment designed to aide manufacturers in separation or refining end products & intermediary procedures. Stiff competition persists among manufacturers, suppliers and exporters to market the vibro / gyro sifter
Advancement and change are the two words which keep pushing us forward as leading manufacturers, suppliers and exporters. Innumerable manufacturers, exporters and suppliers are into manufacturing gyrator separator but we at StarTrace, Chennai, Tamilnadu surpass all our competitors and make it to the top with outstanding quality, servicing and cost effectiveness.
The underlying purpose for using circular rotatory separator is grading or separating various sizes; which may be latter on used for different purposes. The gyro separator or vibro separator uses sifter which makes it possible for retaining the required sized feed and discarding the unwanted rubbish or stones mixed with the feed. Thus facilitating collection of refined matter.
Functioning of Vibro sifter:According to Manufacturers specification the vibro sifter functions with a motor which initiates vibratory motion across circular gyratory screen. The substance to be refined is fed from the top of vibro separator. This directly comes into contact with circular vibro screen sieves of fixed size. Rotary & circular motion initiated by motor spreads the fed matter across the circular rotatory vibro sifter. As the area increases; faster and efficient separation may be carried out, proportionately larger volumes can be managed in circular rotatory Gyratory screen.
On reaching the next vibro sifter further evaluation according to size is done with continued rotatory motion. Segregation made at each level is delivered at tangential. Gyratory sieves count can be increased to any number depending on number of division required. More no. of sieves; more advanced separation through sifter. Circular rotatory vibro sieves are held in position by fastening rungs that can be loosened for erection and tightened on attaching sifter at every level.
As a step towards modernizing ours techniques the Ultrasonic Screen Separator was introduced. It is an intelligent combination of vibration from motors as well as ultrasonic sound frequency from an ultrasonic energy converter. To sieve in such an amalgamated environment; the resulting output is superior in quality and delivers more than expected.
There seems to be a lot of praise for the Ultrasonic Screen separator which is also called as Ultrasonic Gyratory Screen separator, Ultrasonic Vibrating screen separator, Ultrasonic Vibrating sieve and Ultrasonic sieve separator, this is because of the efficiency brought about during the screen separation process.
Before we get into the working of the ultrasonic sieve separator lets understand the term "Ultrasonic" or ultrasound as it is commonly called. These are sound frequencies much higher than ones audible to man. When the ultrasonic waves are used they produce a vibrating effect. This vibrating action facilitates penetration which aids fine refining of substances.
Whilst enjoying immense popularity for many years on small horizontal and inclined screens, STAR TRACE is the first company in the world to perfect this simple drive arrangement on large horizontal and inclined screens. This single development has resulted in tremendous advantages as far as reduced maintenance, compactness and simplicity are concerned.
Besides the simplicity of the drive, many other features have been incorporated to provide machine which is specifically designed for heavy duty applications, long life, and low operating and maintenance costs, at a competitive price. The standard range of screens is presented later in the brochure, and these are normally available on short delivery.
During material dewatering, water is filtered through the mesh as a result of vibration while the material is conveyed toward the point of discharge. The filtered water carries solid particles whose size is slightly smaller than the mesh openings, which must be recovered by means of hydrocycloning and incorporated to final product in the discharge area. The level of moisture that can be obtained in the end product is between 10% and 15%, depending on its nature, particle size distribution and water content in the feed materials.
When the two vibrating motor that installed vertically on the sieve relatively rotate, the eccentric block of two vibrating motors produce rated excitation force. The horizontal excitation force cancel each other out, the vertical excitation force is transported to the whole screens surface through the body mass vibration. Materials do the jumping movement on the screens surface to the outlet because of the vertical excitation force. Materials which smaller than the mesh drop into the lower layer and discharge from the outlet after doing the jumping movement. Because of the reasonable screens, after vibrating screens, we can get materials of different concentration particle sizes and done the rating work of materials.
DEWATERING CONSTRUCTION DEWATERING SCREEN:Screen, formed by modular polyurethane or stainless steel panels. The special design of these panels, with trapezial cross section mesh openings, together with their elasticity, revent obstruction and blocking. The result is a larger effective filtering area than in other types of mesh. Thanks to the modular design, the position of the mesh in the panel can be changed to ensure a regular wear of each panel.
VIBRATORY MOTOR:These rugged, heavy duty units are exceptionally well insulated against the ingress of dust and water. Their IP 55 protection ensures that the units can operate in wet conditions, such as in washing and dewatering applications. A very generous holding-down bolt design is incorporated. A common complaint in the past has often been that vibratory motors tended to come loose. A great deal of thought and attention has been given to the fastening design of these motors. When compared with other makes of vibratory motors, the holding-down bolts are often in excess of 50-1 00% over designed.
This, together with stress-relieved and machined surfaces and correctly torched nuts and locknuts, results in an exceptionally secure vibrator fastening system. When two vibratory motors of the same frequency are fixed to a rigid common base, which is freely suspended, or supported and run in opposite directions to each other, they automatically synchronise to produce a straight line motion. When this motion is applied to a screen, the result is a horizontal action screen suitable for screening, conveying and dewatering of a large variety of products in limited headroom situations.
The Type Universal circular motion Screens are new generation vibratory screening machine characterized by low profile, efficient protection of support structure from vibrating masses and virtually noiseless operation.
The various versions of these circular motion Screens permit its Use for wet and dry screening, coarse and fine Separations and are widely used in steel mills, mineral Beneficiation plants, chemical, mining, food and Fertilizer industries, coal preparation plants and many others.
STAR TRACE vibro separator is a unique particle size gradable separator designed for greater capacity per meter square of screening area & over size material discharge with relatively much less percentage fines than other screening machines.
Our company has been a leader in manufacturing and supplying a vast variety of vibro separators to various industries across the country. We offer horizontal vibro separator and circular vibro separator which come with many special features. Our vibro separators are known for their high performance, innovative designs, and affordable prices making them extremely popular among customers.
The motivation is through a unbalanced motor with a double extended shaft, fitted at both ends with eccentric weights .The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane, which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate.
The bottom eccentric weight rotates below the center of mass creating tilt on the screen giving vibration in vertical and tangential plane.Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of under size material to pass through the screen. Rugged Springs placed over the circular motor base amplifies the vibration.
The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weight creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery. Increasing the top eccentric mass, increases the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the centre of mass, creating tilt on the screen, giving vibration in vertical & tangential planes.
Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of under size material to pass through the screen. The vertical motion also minimizes blinding of screen by "near size" particles. The tangential component of motion is controlled by the angle of lead given to bottom weights with relation to top weight. Variation in lead angle controlled the spiral pattern of material travel over the screen cloth.
Speed & flow pattern of material travel over the screen cloth can be set by the operator for maximum throughout & screening efficiency for any screen able product, wet or dry, coarse or fine, heavy or light, hot or cold. Typical material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet.
Linear Vibrating Screen uses vibrating motor as vibration source to make the materials be thrown on linear vibrating screen surface and make the sport straight line forward. This device can be equipped with single or multilayer linear vibrating screen to achieve the grading, impurity removing, powder sifting, testing and end washing purposes and so on. It main components: motor, screen, frame, in-feed hopper and output hopper, etc.
The motor through vee belt makes the eccentric of the activator start high speed rotation. Operation of eccentric block generates a lot of centrifugal force, stimulate screen forming certain amplitude circle movement. Materials on the tilted screen surface do continuous throwing movement after receiving the impulse given by sieving box. During the process of collision of materials and sifter, the grain which is less than the screen hole will be chosen so as to realize the grading.

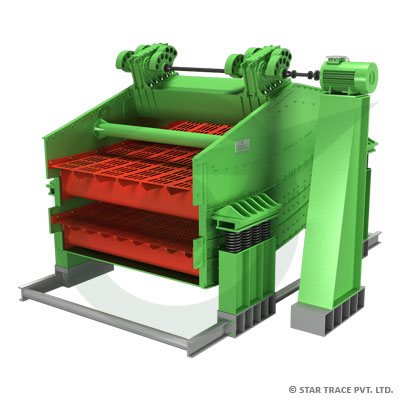

Star Trace banana vibrating screen , the shape of which is just like a banana, is a linear vibrating screen with a box type exciter, and the screen deck divide into several zones with different dip angles. From the feed end to the discharge, the ratio of materials quantity and flow speed on different zones is stable. Compared with common vibrating screen, the handing capacity can increase by 1.5 to 2 times, it is excellent for medium and fine size materials.

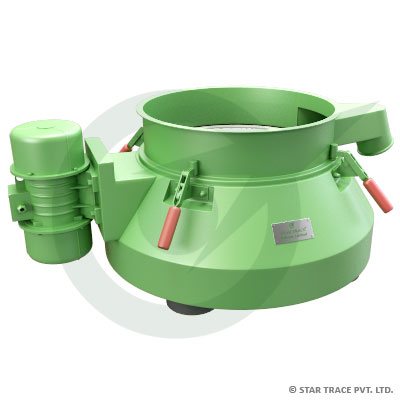

Particle size is one of the most important properties of any bulk material. Electromagnetic Vibrating Test Sieve Shakers are engineered to provide dependable, accurate particle analysis, quickly and consistently.
Typical sample analysis applications include handling a variety of material characteristics, such as :
Test Sieve Shakers electromagnetic design offers many equipment-feature benefits compared with manual or motor-driven units. The electromagnetic shaker combines sharp, vertical motion with rotary motion at 3,600 vibrations per minute for optimum performance. These high speed, straight-line vibratory actions minimize particle deterioration, provide faster particle separation with improved accuracy and assure uniform particle size distribution.
Star Trace is one of the leading manufacturer of Flipflop vibratory screen. Screening the bulk material is an important process. In order to screen the bulk material in difficult products like damp, stalk and leaf materials or matted substance Flipflop screen is being used.
Flipflop Vibratory screen Working Principle:Star Trace Flipflop vibratory screen expand upon the traditional linear vibratory screening method and the conventional circular vibration screen by combining the two motions in order to create dual vibration movement. These flipflop vibratory screen is highly effective because with the aid of resonance they use only one drive to power the dual vibration, and because they come fitted with the latest screen, which are proven to be extremely effective in screening all manner of waste material.

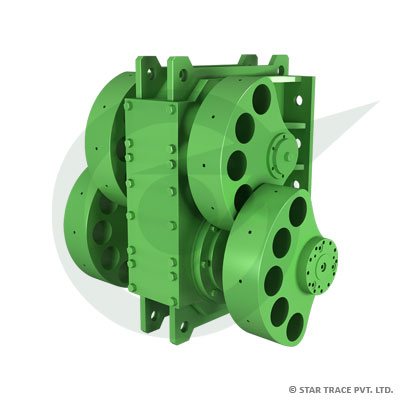

Star Trace is one of the leading company which manufacturing the Geared Force Exciter. Star Trace Geared Force Exciter is used in the heavy-duty gearbox to create the linear vibrations for volumed material handling with maximum feed rates. Our Geared force exciter provides maximum opearational efficiency.
Working Principle:Star Trace gear box is having two types of counter rotating shafts. Each counter shafts having two counter weights to produce linear motion for vibrating feeders, screens and so on. The special care should be taken while manufacturing the counter weights so that the static moment is delivered as we required.The special care should be taken while manufacturing the counter weights so that the static moment is delivered as we required.
The gearbox contains hardened and ground gears in a cast housing. The additional holeas are provided in the counter weights is used for adjust the mass according to the required static moment. Our geared force exciter is customized products and depends upon the need with input speed ranging from 750-1500rpm and dynamic moments from 500kgcm-170,000kgcm. The bearings are accommodated in oil-lubricated due to high-speed operation of the gears.
