Impulse Magnetisers with magnetisation fixtures made to customer's specifications to magnetise, demagnetise and calibrate magnet systems,for example in electro motors, loudspeakers, sensors etc.
DESCRIPTION:It offers proven quality in compact design.
Operation of magnetisation equipment in a 24 hour / seven day a week industrial environment requires only the best design and components.
Our goal is to be invisible! No problems or concerns with this machine.We use a 2000 Volt magnetisation technique.
The combination of 2000 V with medium capacitors allows for moderate magnetization impulses. This gives more magnetization field in the magnets with lower losses in the steel.
Its maximum energy of 10000 Ws meets a wide range of magnetization tasks.

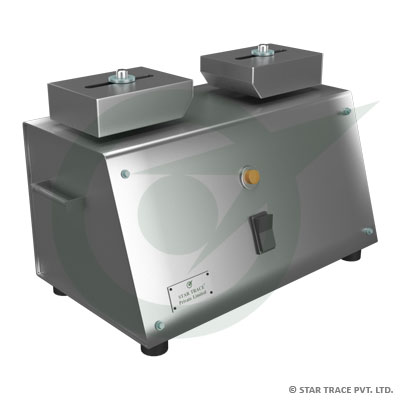

STR Series of Magnetisers cum Demagnetisers are totally new types of machines which perform a dual role of charging and discharging of fully assembled speakers by just flick of a button. They are basically high voltage capacitive discharge equipment which can fully saturate an assembled speaker magnet or fully discharge the same without having to dismantle them in any way.
ADVANTAGES:STR Range of Magnetisers cum de magnetisers can fully charge or discharge assembled speakers. Hence they are adaptable for assembly line operation. This saves a lot of time and labour of dismantling the magnets from speakers for discharging applications.
The STR - Range pay for themselves in a short time.
SPECIFICATIONS:| MODEL | A | B | C | D | E | Core Area sq.in | Max.Gap H | Net Wt.lbs | Voltage Input | Amps |
| STMBF 150 | 2.5 | 1.0 | 7.3 | 9.75 | 11.0 | 8 | 2.25 | 40 | 120 VAC | 5.5 |
| STMBF 240 | 3.5 | 2.0 | 8.44 | 13.25 | 13.0 | 18 | 3.375 | 120 | 120 VAC | 8.5 |
| STMBF 500 | 4.5 | 2.0 | 10.5 | 20.0 | 16.0 | 32 | 4.5 | 252 | 240 VAC | 9.5 |
| STMBF 600 | 5.5 | 2.0 | 15.8 | 32.0 | 13.0 | 50 | 5.5 | 485 | 240 VAC | 12.0 |
| STMBF 2000 | 6.0 | 5.0 | 36.0 | 48.0 | 24.0 | 72 | 6.25 | 1750 | 240 VAC | 35.0 |
