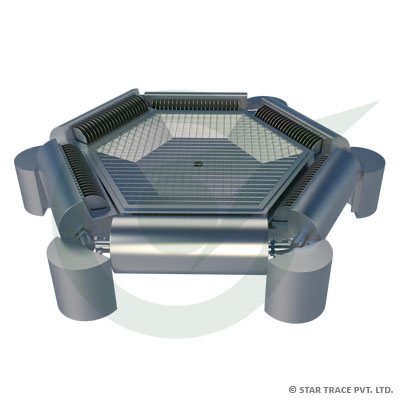

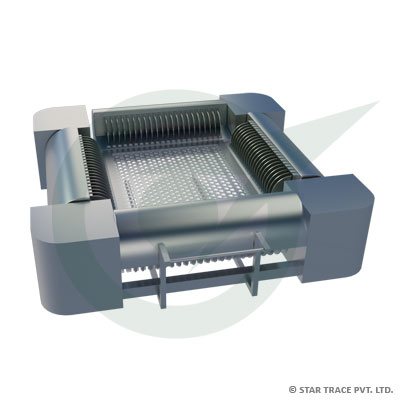

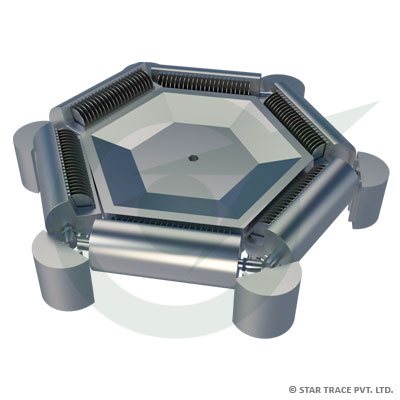

Oil Disc Skimmer


Oil Disc Skimmer

The Oil disc (brush or tooth disc) skimmer is mainly composed of the hydraulic power station, skimmer head (the main unit), hydraulic oil hose and oil pipeline. It is applicable to recover oil spills of various viscosities. It can be widely used for the recovery of oil spills on ocean, rivers, ponds and other areas.

The power station operates with the hydraulic oil pump and the oil delivery pump driven by a diesel engine or motor; the main unit is composed of the disc unit, oil collecting channel, buoy and other parts; the main unit floats on the water surface; the power station is located on a boat or bank.

  • Disc oil skimmer
  • Oil disc skimmer
  • Oil skimmer
Disc oil skimmer Oil disc skimmer Oil skimmer

Features:
  • The skimmer head floating on water is made of the corrosion resistant glass fiber reinforced plastic, stainless steel or the marine – grade aluminum alloy. It can be used for the recovery of oil spills on waters. It has a solid and endurable structure. The buoy is filled with foams to secure a duai – buoyancy.
  • The disc skimmer can recover lubricants, fuels, vegetable oils and other flowable oil spills of low and medium viscosity.
  • The disc's rotating speed can be adjusted with a step less speed regulation according to the conditions on the oil spill site to reduce the water content of the recovered oil spills.
Technical Data
Parameter/Model STDS3 STDS5 STDS10 STDS20 STDS30 STDS60
Recovery Capability 3 5 10 20 30 60
Drive Power(Diesel Engine or Expiosion-proof Motor)(KW) 4.0/2.2 4.0/3 6.3/4 4.0+6.3/7.5 14.5/11 21/15
Main Unit Weight(Kg) 18 55 70 120 160 200
Weight of Power Station 80 100 115 255 500 550
Diameter of oil discharge hose 2" 2" 2" 2.5" 3" 4"
Note:

Our product is customized one it will change as per customers requirement.

Special Oil Disc Skimmer of different sizes and capacity can be made on request, Please send us Your's Technical data and application, required for our engineers to provide.
